Deliver 2 channels of Dante to line-level Pro AV analog audio devices

Built for AV integrators, the 2-channel analog output adapter features Euroblock terminals for simplified connections to amplifiers, audio processors, and other Pro AV equipment and includes a mounting bracket for effortless installation.

2-Channel Analog Output

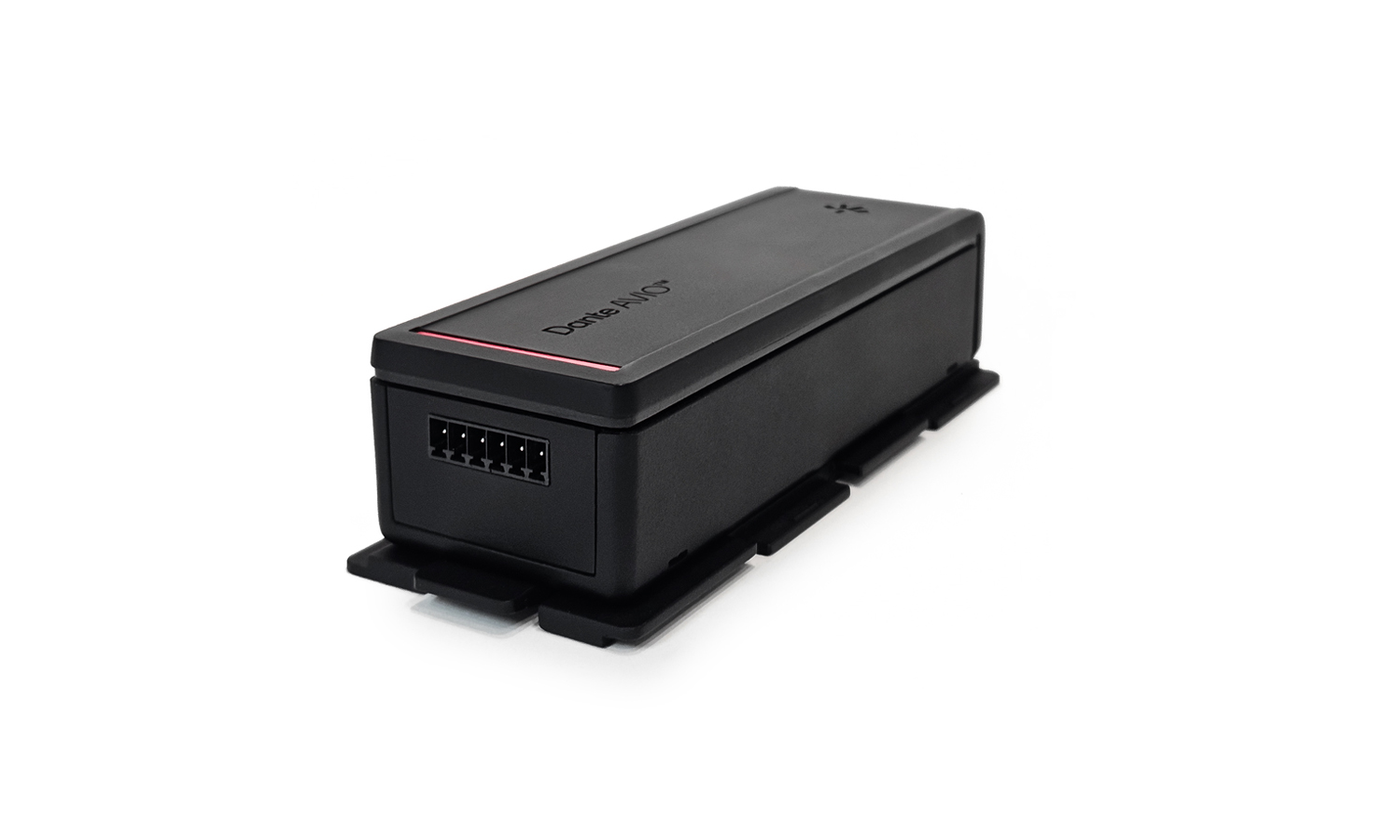

• Connector type: 6 pin Euroblock terminal, 3.5mm pitch
• Max signal level (balanced): +4dBu / 0dBu / 0dBV / -10dBV
• Frequency Response: 20Hz to 20kHz (-/+0.2dB)
• Impedance: 150k Ohm balanced 75k Ohm unbalanced
• Sample Rates: 44.1, 48, 88.2, 96 kHz
• Bit Depth: 16, 24, 32-bit PCM
• Dante Device Latency: 1, 2 or 5 ms
• Power: Class1 802.3af PoE
• Power Consumption: <2 watts
• Operating Temp: -10 to +45C
• Part Number: AVIO-A-2OUT-EB

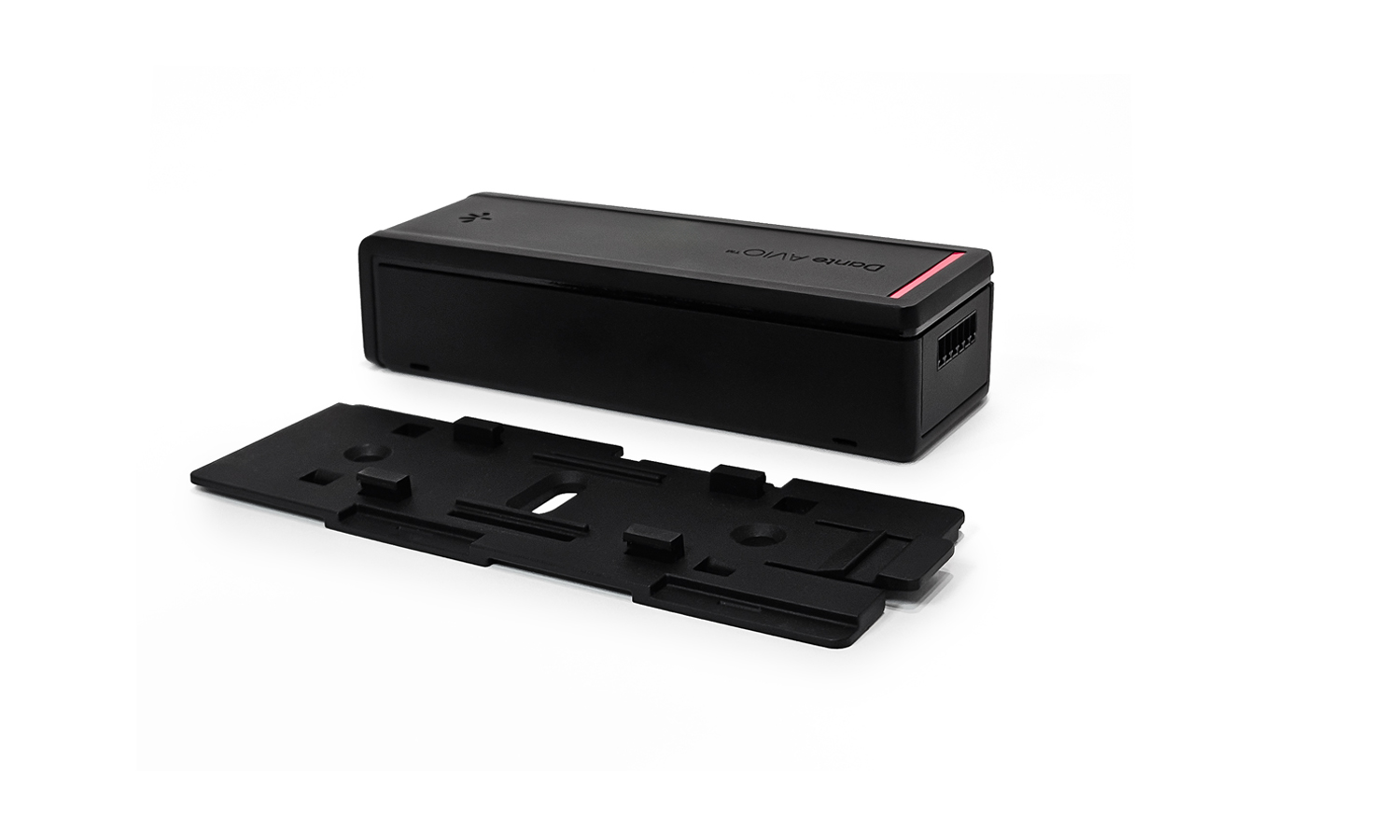

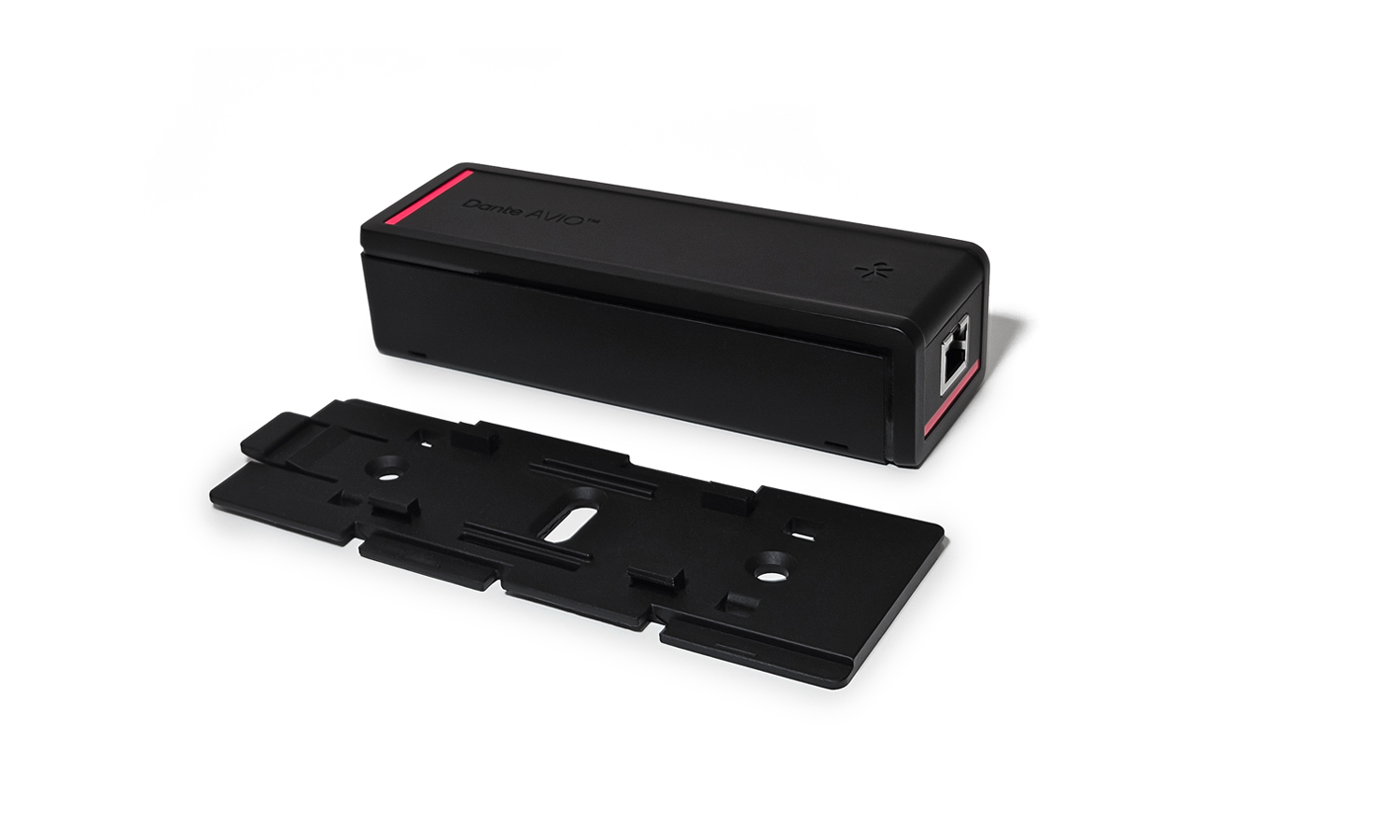

• Mounting options: Mounting Bracket (included)
