Control USB BT is a basic 3 Channel 19″ Stereo Rack Mixer with SD/USB/BlueTooth player.
Channel 1 is assigned to the Microphone input. On Channel 2 You can play back your mp3/wav music files from USB/SD-card, or connect to another portable audio device via the 3.5mm external stereo-input. Channel 3 lets you control any external line source via a pair of stereo RCA inputs on the rear.
Key Features:
- Compact 1u low noise audio design
- USB/SD/BlueTooth player
- Individual volume controls
- Master with Volume, Bass and Treble controls

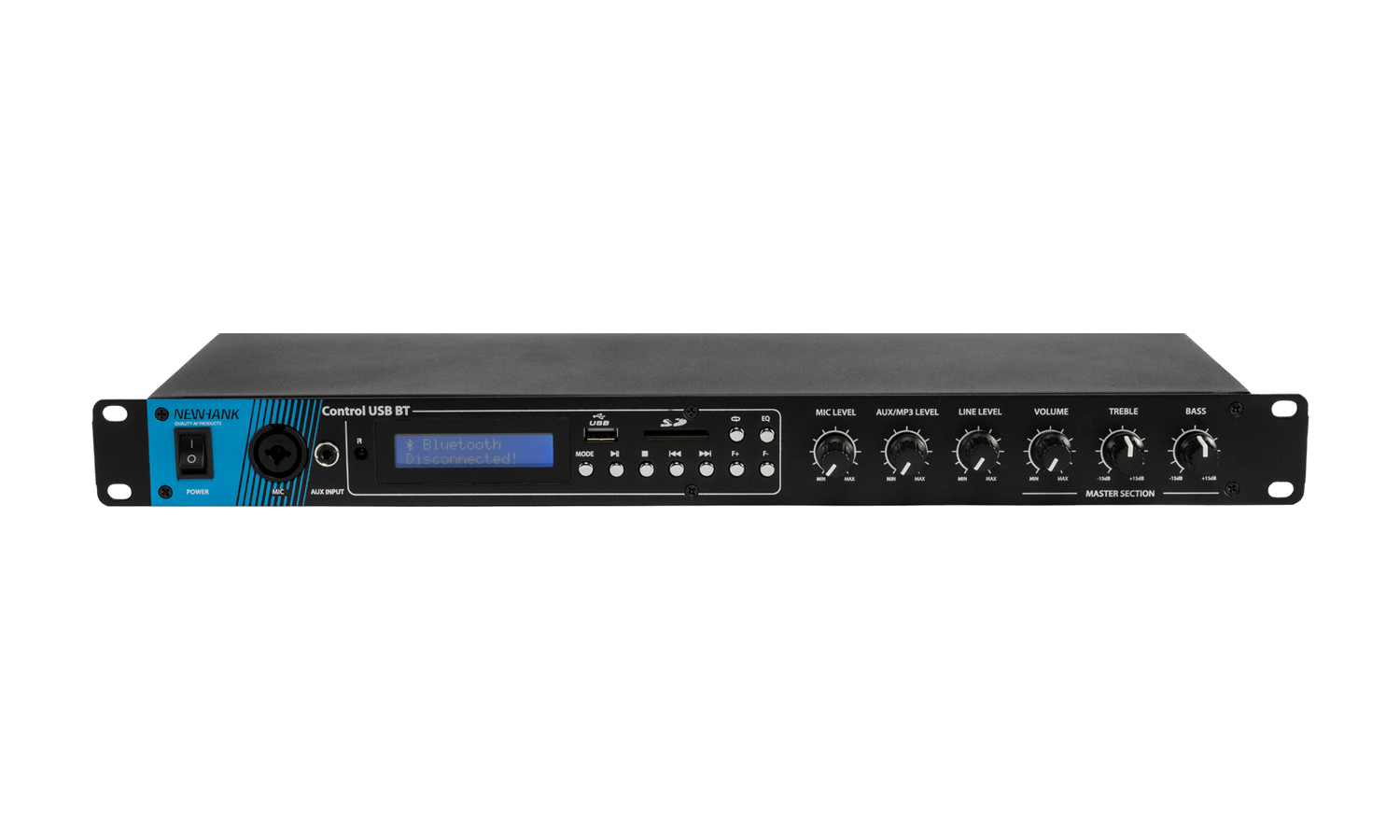

- Jack Mic and 3.5mm stereo Line input on the front panel

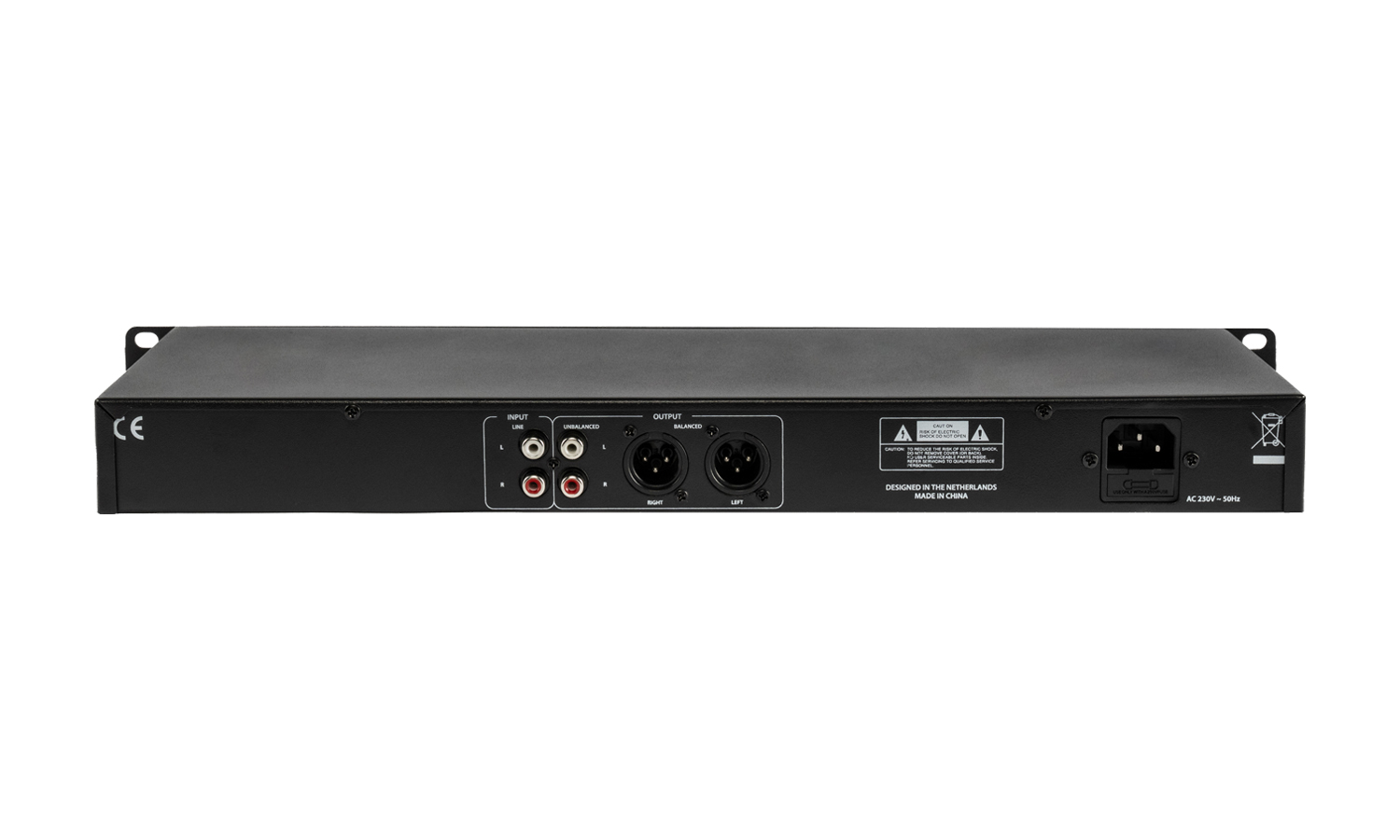

- 1 Stereo RCA Line input on the rear
- Master outputs both on RCA and Balanced XLR
- Shuffle play and read WAV and Mp3 files
EAN Code: 8718868408273
You might be interested in:
– MP103MK2 USB – usb mp3 player
Line 10Kohm, Mic input impedance
Mic 600 0hm input impedance
S/N Ratio: >98 dB
Total Harmonic Distortion: <0.02% (IKHZ)
Frequency response 20Hz-20KHZ
Power Consumption 200-240v AC, 4.5W
Dimensions:
Face Panel 482x44.4mm
Rear Panel 400x44.4mm
Casing Depth 139mm (excluding connectors)
Package dimensions : 590 x 440 x 450 mm
Weight: 2.2kg
Package Weight: 17.5kg
Unit per Package: 6pc
Manual
Control USB BT Manual (5.1MB)
Technical documentation
Control USB BT Specsheet (468kb)
