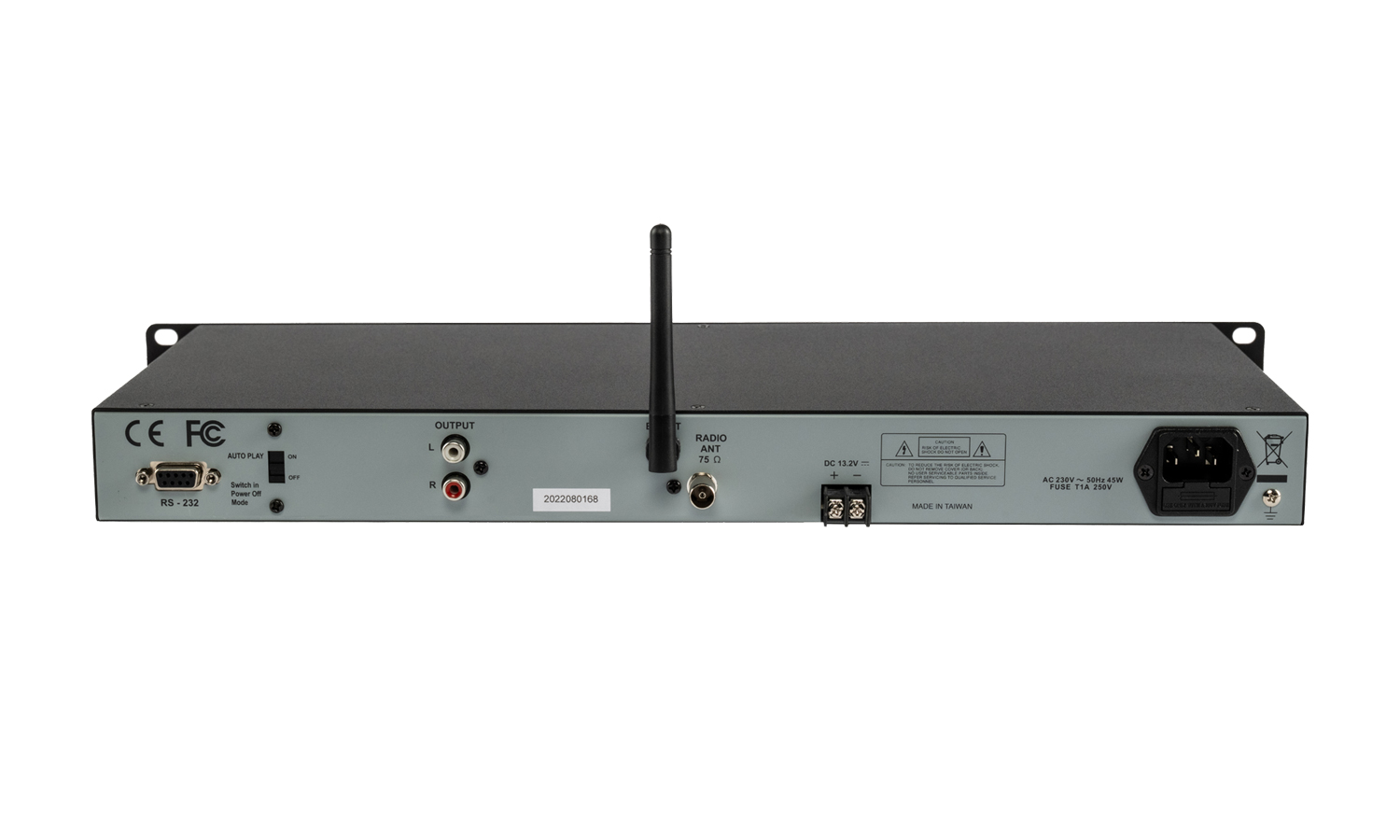

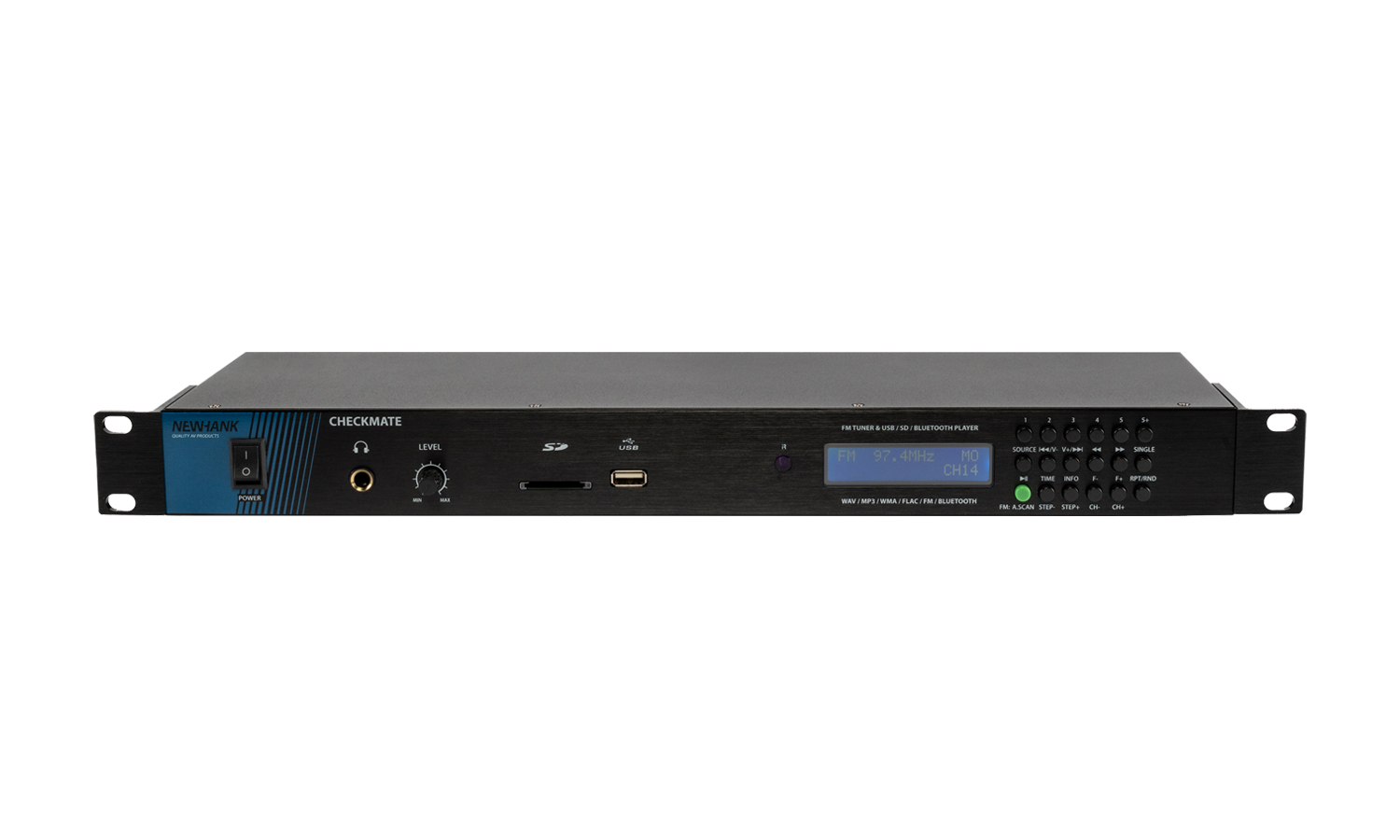

Checkmate is a stereo audio source including FM tuner, USB slot, SD slot and Bluetooth reciever. Checkmate has an unbalanced and balanced set of stereo outputs on the rear and a headphone output (jack) with volume control in front panel. IR remote control, FM antenna, 2x RCA cables and rack-mount bracket are included.

Key Features:

  • Audio player with Bluetooth
  • USB, SD, FM tuner and Bluetooth connection
  • 2xRCA unbalanced output (stereo)
  • 2xXLR balanced output (stereo)
  • Audio Outputs: 1 x stereo unbal + 1 x stereo bal
  • Local Media: USB, SD, FM tuner, Bluetooth connection
  • Others: IR remote control, FM antenna, 2x RCA cables and rack-mount bracket included
  • Accessories included

Applications:

  • Audio sound source in A/V corporate, retail and education applications
  • BGM & Paging solutions, with mes- sage triggering and program BGM
  • Integration in installation global control systems

EAN Code: 8718868408136

  • Power supply: 90v- 260v (50hz/ 60hz)
  • The power consumption: 10w-15w
  • SNR: 95db
  • Frequency response: 20hz-20khz
  • Audio output: rca,xlr
  • Sound specifications: FM/Bluetooth/USB supports WAV MP3 WMA audio files
  • The total harmonic distortion: >0.01%
  • Dynamic Range: > 92db
  • Distortion: >0.01%
  • Frequency: 44.1khz
  • Dimensions: 483x44x130 mm
  • Package Dimensions: 550 x 550 x 450 mm
  • Weight: 2kg
  • Package Weight: 18kg
  • Unit per Package: 8pc
