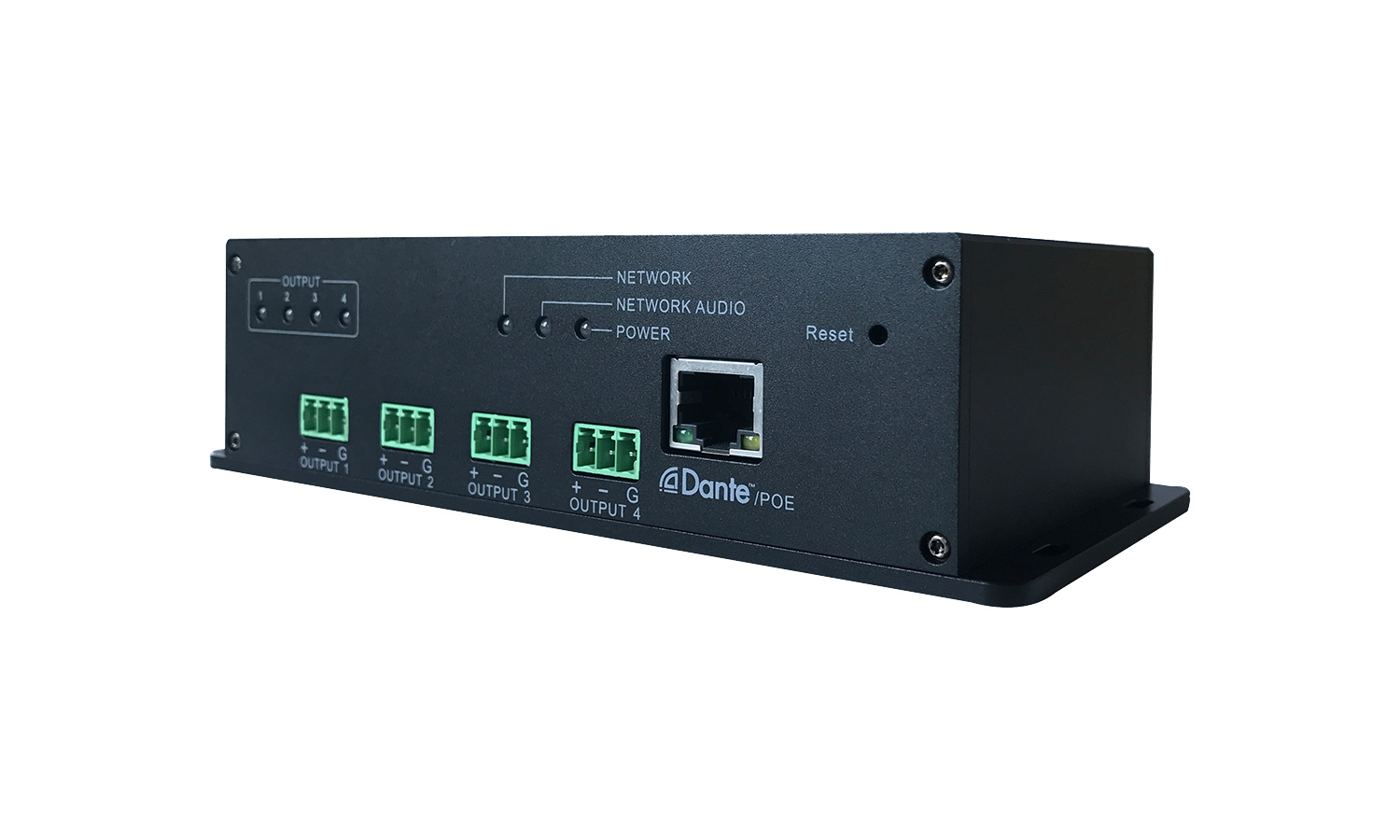

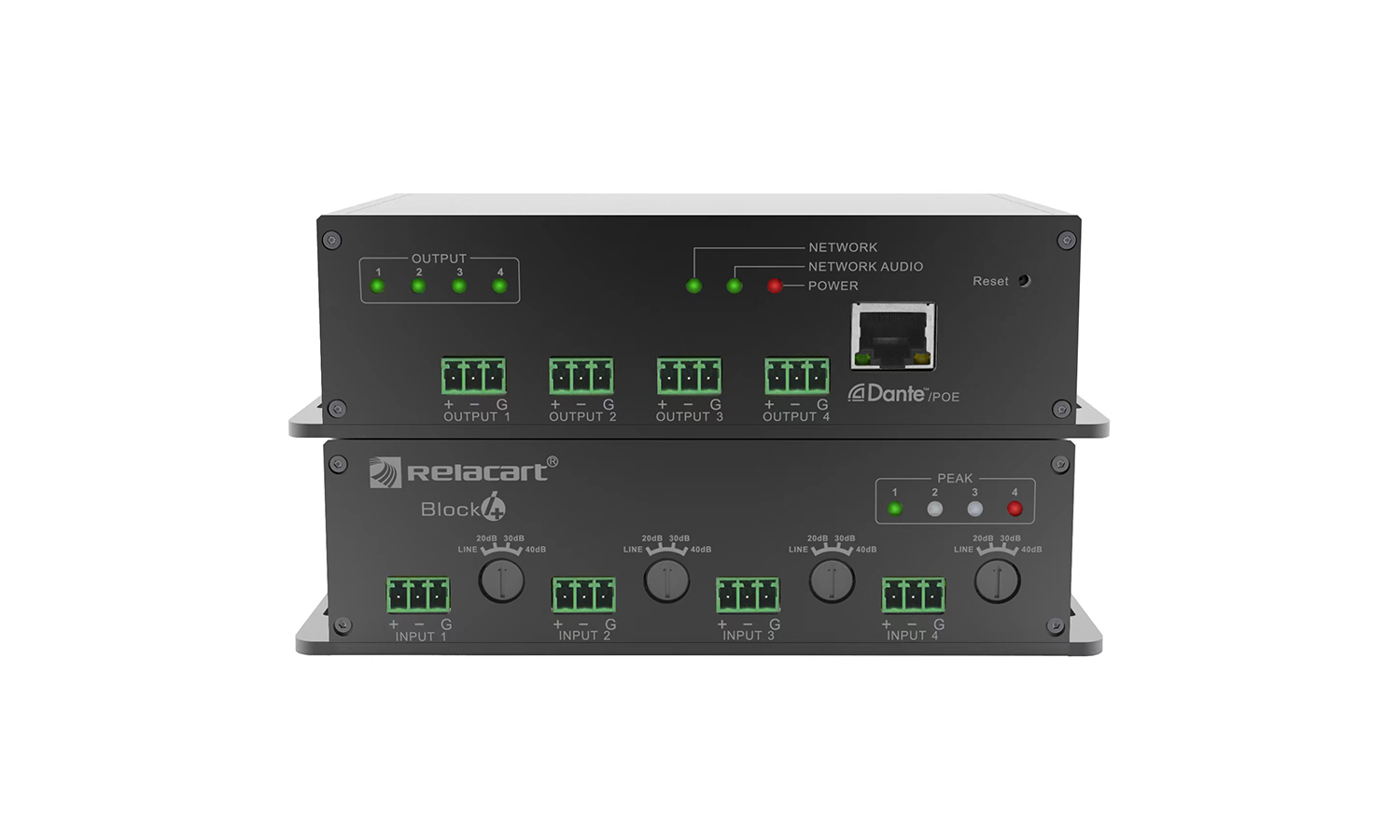

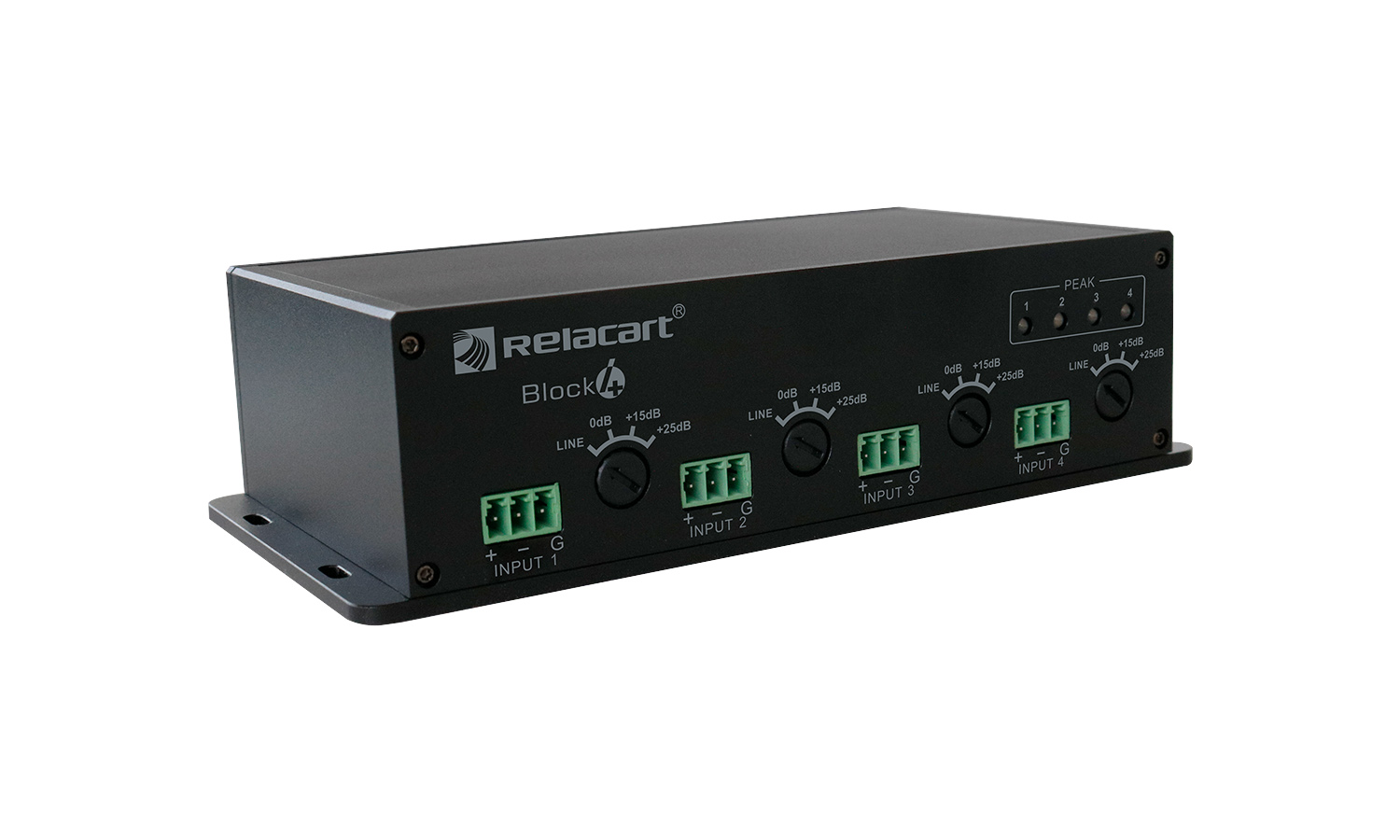

Block 4 is a Dante-enabled digital audio switch combining 4 input and 4 output.

Key Features

• Connect directly to network via Ethernet cable-no need for expensive audio cable or soldering
• Powered by network PoE: PoE IEEE802.3af standard
• Easy operation, simple mechanical gain adjustment switch, clear working indicator
• 48V phantom power
• 4-channel analog audio output, equip with four indicator
• Equip with network connection indicator, network audio indicator, power indicator, reset switch
• RF anti-interference design
• Firm alloy furnishing

• Output Level: 18dBV
• Audio Input Gain: 10dB, 20dB, 30dB
• Audio Connector: standard quick connector
• Frequency Response: 20HZ～20KHZ±2dB
• Dynamic Range: 110dB
• T.H.D.: 108dB, 1 kHz at 1 Pa
• Power Consumption: 5W
• Input Impedence: 2.2KΩ
• Output Impedance: 600 Ω
• Dimension: 166mm X 83mm X 44.6mm
• Weight: 0.5 kg
